SF-200

contact number:+86 20-34554789

product details

Suitable for micro and light truck type cars, using engine driven refrigeration units.

It is the first choice for transporting refrigerated food, dairy products, vegetables and fruits. SNOWFALL recommends you choose between a classic engine drive unit and a brand new backup built-in unit. Covering all container volumes, one or more of this series will meet your needs.

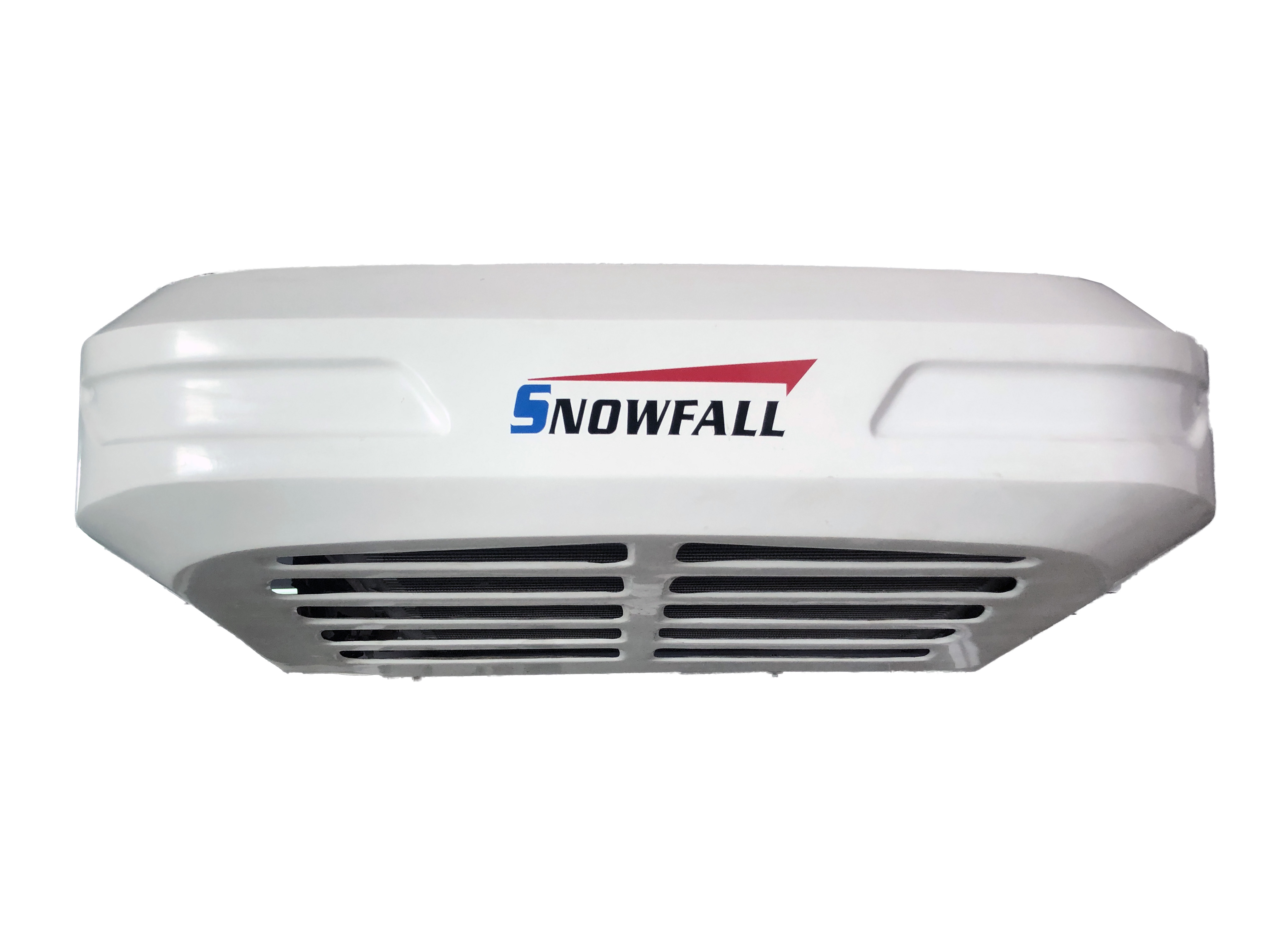

The SF-200, an engine-driven transport refrigerating unit, is a reliable refrigerating unit for a refrigerated preservation vehicle with a size of 7~ 14m. R134a environmental refrigerant is recommended.

Feature:

1. Optional DC 12V or 24V for your choice.

2.The whole transport refrigerating unit is light and compact, the condenser is in front, and the evaporator can be installed as required.

3.This series of models fully covers the refrigerated capacity ranging from 7 m to 14 m and accurately matches its refrigerated volume from per square meter.

4.Each SNOWFALL will be featured with low cost, low maintenance, low noise, energy saving and environmental protection.



Model

SF - 200

Applicable Temperature (℃)

15 ~ -18


Cooling Capacity

Environmental Temperature

35°C

0°C

2100Kcal

-18°C

1210Kcal


Compressor

Model

SD5H11/5H14

Displacement(cc/r)

110cc/138cc


Evaporator

Type

Inner screw tube and aluminium fin

Fan Type

Axial fan

Number of Fan

1 Fans x1000m3/h

Voltage

DC 12V/DC24V

Power Consumption

≤ 33A (DC12V)
≤ 16.5A (DC24V)

Refrigerant

R-134a/R-404a

Defrost Type

Automatically hot air defrost

Structure

Split direct drive unit


Dimensions (mm) /Net weight(kg)

SF-200Evaporator

L610x W790 x H180

16.5 kg

SF-200Condenser

L520 x W840 x H315

18.2kg

SF-T200Condenser

L610 x W790 x H180

21.33 kg

SF-T200Condenser

L920 x W660 x H200

23.33kg

 ElectricStandby systemoptional part
