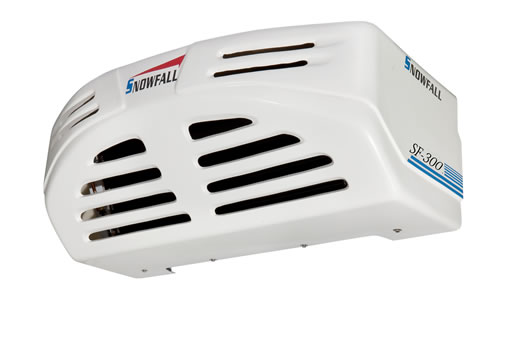

SF-300

contact number:+86 20-34554789

product details

Introduce:

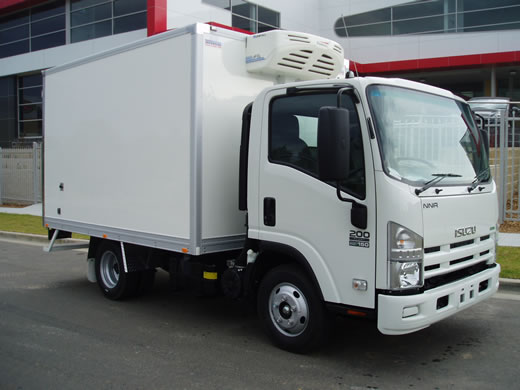

Suitable for light truck refrigerated trucks, using engine driven refrigeration units.

It is the first choice for transporting refrigerated frozen food, dairy products, vegetables, fruits and ice cream. Its refrigeration performance is very stable and reliable. SNOWFALL recommends you choose between a classic engine drive unit and a brand new backup built-in unit. Covering all container volumes, one or more of this series will meet your needs.

The SF-300, an engine-driven transport refrigerating unit, is a reliable refrigerating unit for refrigerated preservation vehicles with a size of 7~-23m.

Feature:

1.Optional DC 12V or 24V for your choice

2.The whole transport refrigerating unit is light and compact, the condenser is in front, and the evaporator can be installed as required.

3.This series of models fully covers the refrigerated capacity ranging from 7 m to 23 m and accurately matches its refrigerated volume from per square meter.

4.Each SNOWFALL will be featured with low cost, low maintenance, low noise, energy saving and environmental protection



Model

SF - 300

Applicable Temperature (℃)

15 ~ -25


Cooling Capacity

Environmental Temperature

35°C

0°C

2900Kcal

-18°C

1800Kcal


Compressor

Model

SD5S14

Displacement(cc/r)

138cc


Condenser

Type

P.F.

Fan Type

Axial fan

Number of Fan

2Fans x 1000m3/h

Voltage

DC 12V/DC24V


Evaporator

Type

Inner screw tube and aluminium fin

Fan Type

Axial fan

Number of Fan

2 Fans x1000m3/h

Voltage

DC 12V/DC24V

Power Consumption

≤ 30A (DC12V)
≤ 18A (DC24V)

Refrigerant

R-134a/R-404a

Defrost Type

Automatically hot air defrost

Structure

Split direct drive unit


Dimensions (mm) /Net weight(kg)

SF-300Evaporator

L610x W1010x H180

18.5 kg

SF-300Condenser

L520 x W1080 x H370

27.1kg

SF-300ECondenser

L610x W1010x H180

18.5kg

SF-300ECondenser

L560 x W1130 x H375

27.1kg

Electric Standby systemoptional part

AC 220V /AC 380V
